with natural circulation with a capacity of 40 and 60 massecuite and with mechanical circulation intensification with a capacity of 15, 30 and 40 massecuite.

You can flip through the table. (left / right)

Characteristic	А2-ПВВ- 1000	А2-ПВВ- 1180	А2-ПВВ- 1500	А2-ПВВ- 1800	А2-ПВВ- 2120	Л2-ПСП- 2360	А2-ВАГ- 3000
Heat transfer surface area, m²	1000	1180	1500	1800	2120	2360	3000
Internal working pressure in the steam and suction chambers, MPa (kgf/cm²)	0,392 (4,0)	0,392 (4,0)	0,392 (4,0)	0,392 (4,0)	0,392 (4,0)	0,392 (4,0)	0,4 (4,0)
External working pressure (vacuum) in the steam and suction chambers, MPa (kgf/cm²)	0,09 (0,9)	0,09 (0,9)	0,09 (0,9)	0,09 (0,9)	0,09 (0,9)	0,09 (0,9)	0,03 (0,3)
Internal body diameter, mm	3200	3200	3200	3600	3600	3600	4000
Overall dimensions, mm - height - width	8760 4205	8760 4205	9745 4205	9745 4610	11550 4610	11550 4610	11800 5400
Weight, kg	28450	30580	38000	43230	50100	50100	72600

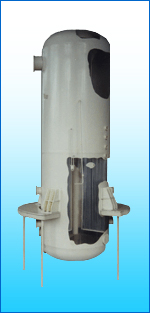

Evaporators
